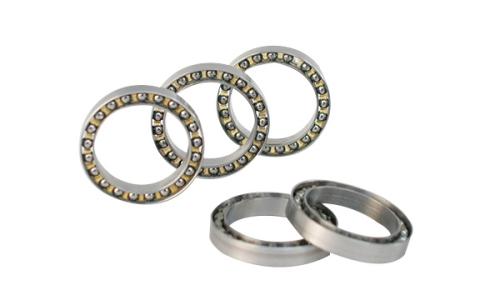

Thin-section bearings are characterized by their thin rings and small cross-sections. They are lightweight, offer low friction, and provide high rigidity and precision.

Key Features:
  • Particularly useful for compact, lightweight configurations with higher bore diameters.
  • High rotation precision.
Applications:
  • Widely used in aerospace, medical devices, industrial robotics, textile printing, radar communication, astronomy instrumentation, and other high-precision industries.

Designation Principal dimensions Basic load ratings Limiting speed
Dynamic Static Grease Oil
d D B Cr Cor RPM RPM
mm mm mm KN KN r/min r/min
904KAT2 18.8 25 4 ㅡ ㅡ ㅡ ㅡ
905KAT2 24 32 5 ㅡ ㅡ ㅡ ㅡ
TD61100A 25.4 34.925 4.762 2.5 1.76 ㅡ ㅡ
TDQJ1100A 25.4 34.925 4.762 2.55 1.86 ㅡ ㅡ
806KAT2 30 40 6 ㅡ ㅡ ㅡ ㅡ
CRB3010-2RS 30 55 10 ㅡ ㅡ ㅡ ㅡ
907KAT2 37 50 8 ㅡ ㅡ ㅡ ㅡ
TD61108A 38.1 47.625 4.762 2.8 2.32 ㅡ ㅡ
TDQJ1108A 38.1 47.625 7.625 2.9 2.6 ㅡ ㅡ
CRB4010+2RS 40 65 10 ㅡ ㅡ ㅡ ㅡ
809KAT2 45 60 9 ㅡ ㅡ ㅡ ㅡ
CRB5015-2RS 50 80 15 ㅡ ㅡ ㅡ ㅡ
TD62200A 50.8 63.5 6.35 4.5 3.9 ㅡ ㅡ
TD63200A 50.8 66.675 7.938 6.4 5.2 ㅡ ㅡ
TD72200M 50.8 63.5 6.35 4.75 4.4 ㅡ ㅡ
TDQJ2200A 50.8 63.5 6.35 4.65 4.3 ㅡ ㅡ
911KAT2 57 75 13 ㅡ ㅡ ㅡ ㅡ
CRB6015-2RS 60 90 15 ㅡ ㅡ ㅡ ㅡ
812KAT2 60 80 13 ㅡ ㅡ ㅡ ㅡ
TD62208A 63.5 76.2 6.35 4.9 4.65 ㅡ ㅡ
TD73208M 63.5 79.375 7.938 7.35 7.2 ㅡ ㅡ
TD63208A 63.5 79.375 7.938 6.95 6.2 ㅡ ㅡ
TDQJ3208A 63.5 79.375 7.938 7.1 6.95 ㅡ ㅡ
CRB7015-2RS 70 100 15 ㅡ ㅡ ㅡ ㅡ
814KAT2 70 95 15 ㅡ ㅡ ㅡ ㅡ
815KAT2 75 100 15 ㅡ ㅡ ㅡ ㅡ
TD62300A 76.2 88.9 6.35 5.2 5.4 ㅡ ㅡ
TD72300M 76.2 88.9 6.35 5.4 6.2 ㅡ ㅡ
TDQJ2300A 76.2 88.9 6.35 5.3 6.3 ㅡ ㅡ
CRB8020-2RS 80 130 20 ㅡ ㅡ ㅡ ㅡ
TD63308A 88.9 104.775 7.938 7.8 8.15 ㅡ ㅡ
TDQJ2308M 88.9 101.6 6.35 5.6 7.35 ㅡ ㅡ
TD73308M 88.9 104.775 7.938 8.15 9.8 ㅡ ㅡ
CRB9020-2RS 90 140 20 ㅡ ㅡ ㅡ ㅡ
818KAT2 90 120 18 ㅡ ㅡ ㅡ ㅡ
CRB10020-2RS 100 150 20 ㅡ ㅡ ㅡ ㅡ
TD64400A 101.6 120.65 9.525 10.4 11 ㅡ ㅡ
TDQJ4400A 101.6 120.65 9.525 10.6 12.7 ㅡ ㅡ
TD74400M 101.6 120.65 9.525 11.2 13.2 ㅡ ㅡ
FPXU400-2RZ 101.6 120.65 12.7 ㅡ ㅡ ㅡ ㅡ
TF65404-2RS-A 107.95 127 12.7 10.6 11.6 ㅡ ㅡ
TD67404A 107.95 146.05 19.05 29 26.5 ㅡ ㅡ
TFQJ5404-2RS-A 107.95 127 12.7 10.85 13.4 ㅡ ㅡ
TD76404M 107.95 133.35 12.7 17 18.3 ㅡ ㅡ
FPXU404-2RZ 107.95 127 12.7 ㅡ ㅡ ㅡ ㅡ
822KAT2 110 150 24 ㅡ ㅡ ㅡ ㅡ
TD63408M 114.3 130.175 7.938 8.5 10.2 ㅡ ㅡ
TD66408A 114.3 139.7 12.7 16.3 17 ㅡ ㅡ
TD72408M 114.3 127 6.35 6.3 8.8 ㅡ ㅡ
TDQJ6408A 114.3 139.7 12.7 16.6 19.3 ㅡ ㅡ
FPXU408-2RZ 114.3 133.35 12.7 ㅡ ㅡ ㅡ ㅡ
CRB12025-2RS 120 180 25 ㅡ ㅡ ㅡ ㅡ
824KAT2 120 160 24 ㅡ ㅡ ㅡ ㅡ
TD73412M 120.65 136.525 7.938 9.15 12.5 ㅡ ㅡ
TDQJ7412A 120.65 158.75 19.05 31 31.5 ㅡ ㅡ
FPXU412-2RZ 120.65 139.7 12.7 ㅡ ㅡ ㅡ ㅡ
TD62500M 127 139.7 6.35 6.2 8.5 ㅡ ㅡ
TD64500A 127 146.05 9.525 11.2 13.2 ㅡ ㅡ
TD74500M 127 146.05 9.525 12.2 16.3 ㅡ ㅡ
TDQJ8500A 127 177.8 25.4 48 45 ㅡ ㅡ
FPXU500-2RZ 127 146.05 12.7 ㅡ ㅡ ㅡ ㅡ
CRB13025-2RS 130 190 25 ㅡ ㅡ ㅡ ㅡ
826KAT2 130 175 26 ㅡ ㅡ ㅡ ㅡ
TD66508A 139.7 165.1 12.7 17.6 20 ㅡ ㅡ
TD68608A 139.7 190.5 25.4 46.5 45 ㅡ ㅡ
TD76508M 139.7 165.1 12.7 18.3 22.8 ㅡ ㅡ
FPXU508-2RZ 139.7 158.75 12.7 ㅡ ㅡ ㅡ ㅡ
CRB15025-2RS 150 210 25 ㅡ ㅡ ㅡ ㅡ
830KAT2 150 200 30 ㅡ ㅡ ㅡ ㅡ
TF65600-2RS-M 152.4 171.45 12.7 11.8 15.6 ㅡ ㅡ
TD77600M 152.4 190.5 19.05 34.5 40.5 ㅡ ㅡ
FPXU600-2RZ 152.4 171.45 12.7 ㅡ ㅡ ㅡ ㅡ
832KAT2 160 220 35 ㅡ ㅡ ㅡ ㅡ
TD67608A 165.1 203.2 19.05 33.5 36.5 ㅡ ㅡ
TD68508A 165.1 215.9 25.4 50 51 ㅡ ㅡ
TD78608M 165.1 215.9 25.4 53 60 ㅡ ㅡ
FPXU608-2RZ 165.1 184.15 12.7 ㅡ ㅡ ㅡ ㅡ
TD62700M 177.8 190.5 6.35 6.95 11.6 ㅡ ㅡ
TD64700A 177.8 196.85 9.525 12.5 18 ㅡ ㅡ
TD73700M 177.8 193.675 7.938 10.4 17.6 ㅡ ㅡ
FPXU700-2RZ 177.8 196.85 12.7 ㅡ ㅡ ㅡ ㅡ
836KAT2 180 240 35 ㅡ ㅡ ㅡ ㅡ
838KAT2 190 250 40 ㅡ ㅡ ㅡ ㅡ
TD66708M 190.5 215.9 12.7 19.6 26 ㅡ ㅡ
TD68708A 190.5 241.3 25.4 53 57 ㅡ ㅡ
FPXU708-2RZ 190.5 209.55 12.7 ㅡ ㅡ ㅡ ㅡ
CRB20025-2RS 200 260 25 ㅡ ㅡ ㅡ ㅡ
TD63800M 203.2 219.075 7.938 10.4 17.3 ㅡ ㅡ
TF65800-2RS-M 203.2 222.25 12.7 13.2 20 ㅡ ㅡ
TD77800M 203.2 241.3 19.05 38 51 ㅡ ㅡ
FPXU800-2RZ 203.2 222.25 12.7 ㅡ ㅡ ㅡ ㅡ
842KAT2 210 280 45 ㅡ ㅡ ㅡ ㅡ
844KAT2 220 300 45 ㅡ ㅡ ㅡ ㅡ
TD67900A 228.6 266.7 19.05 37.5 48 ㅡ ㅡ
TD78900M 228.6 279.4 25.4 60 76.5 ㅡ ㅡ
FPXU900-2RZ 228.6 247.65 12.7 ㅡ ㅡ ㅡ ㅡ
CRB25025-2RS 250 310 25 ㅡ ㅡ ㅡ ㅡ
TD661000M 254 279.4 12.7 21.6 34 ㅡ ㅡ
TD771000M 254 292.1 19.05 41.5 63 ㅡ ㅡ
FPXU1000-2RZ 254 273.05 12.7 ㅡ ㅡ ㅡ ㅡ
TD641100M 279.4 298.4 9.525 14.6 27 ㅡ ㅡ
FPXU1100-2RZ 279.4 298.45 12.7 ㅡ ㅡ ㅡ ㅡ
CRB30025-2RS 300 395 35 ㅡ ㅡ ㅡ ㅡ
TF651200-2RS-M 304.8 323.85 12.7 15 29 ㅡ ㅡ
TD771200M 304.8 342.9 19.05 44 73.5 ㅡ ㅡ
FPXU1200-2RZ 304.8 323.85 12.7 ㅡ ㅡ ㅡ ㅡ
TD681400A 355.6 406.4 25.4 65.5 98 ㅡ ㅡ
TD781400M 355.6 406.4 25.4 69.5 112 ㅡ ㅡ
CRB40040-2RS 400 510 40 ㅡ ㅡ ㅡ ㅡ
TD681600A 406.4 457.2 25.4 69.5 110 ㅡ ㅡ
TD681800M 457.2 508 25.4 72 122 ㅡ ㅡ
CRB50040-2RS 500 600 40 ㅡ ㅡ ㅡ ㅡ
